TMSC Reactor System

TMSC Reactor System

A significant number of chemical reactions, besides a reactor, require a measurement system to allow the technicians to be aware of reaction parameters. TMSC Reactor is a device to do both stirring and monitoring. This device is able to stir the batch with various shafts and impellers at the desired speed and also it is able to monitor an index of the implied torque from the composition inside the batch. Various parts of this device will discuss in the following sections. It is worth mentioning that similar industrial assets (without the software) cost more than 1100$ and our device is a low-budget solution for about half of the conventional assets price.

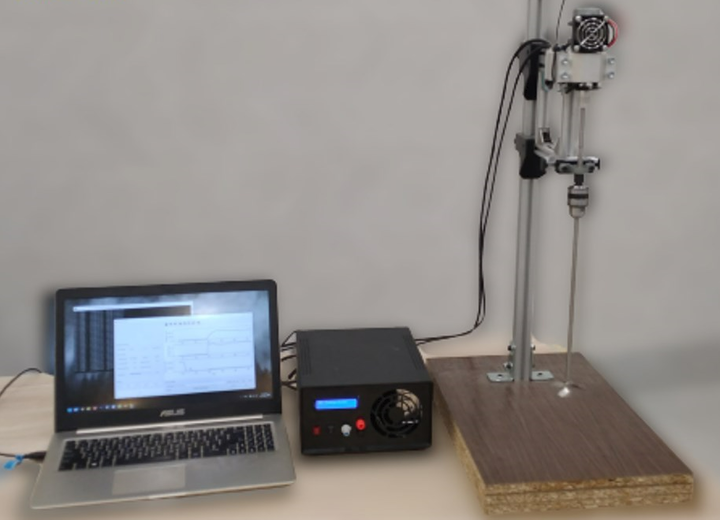

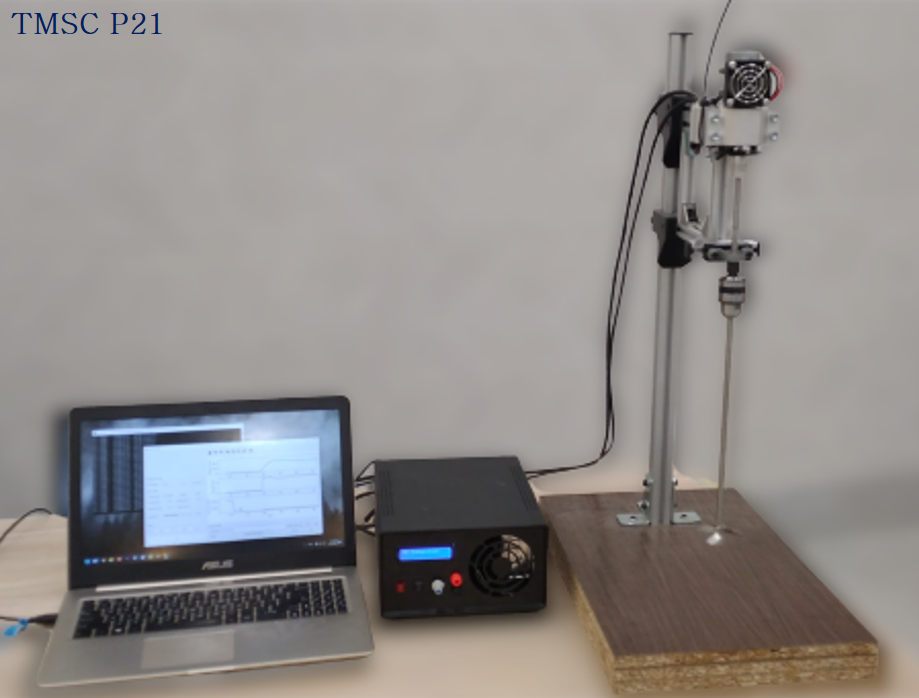

TMSC P21

Properties

  • Speed: 30-500 rpm
  • Torque: up to 4.2 kg-cm
  • Shaft diameter: 5-10 mm
  • Shaft length: up to 50cm
  • Input voltage: 220 v
  • Maximum power: 180W

Main Parts

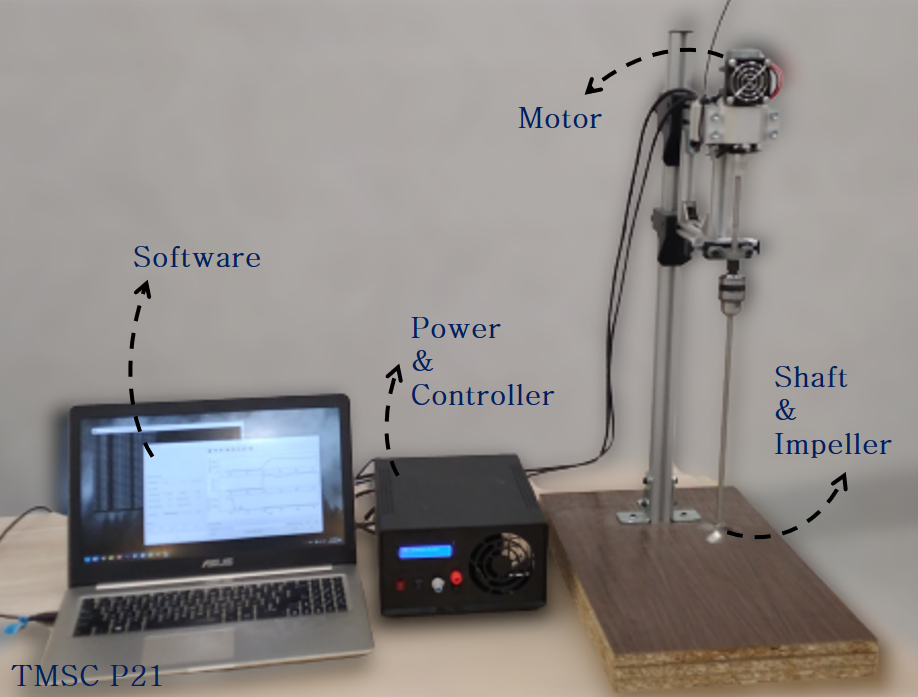

The main parts of TMSC include the shaft and impeller, motor, power & driver box, and the TMCS software.

Shaft system and Speed control

The provided chunk at the end of the motor makes the device customizable enough to work with 5-10 mm diameter shafts. Also based on the geometry of the very end of the shaft various impellers can be installed.

Motor

The motor of the TMCS reactor system is a 24v DC motor which is driven and controlled by the power box and software. Due to the great importance of the resonance effect, the structure has passed various vibrational analyses in addition to dynamic and static tests. The current motor stall current is not more than 8A, but the power box can provide power for 24V DC motors with more stall current.

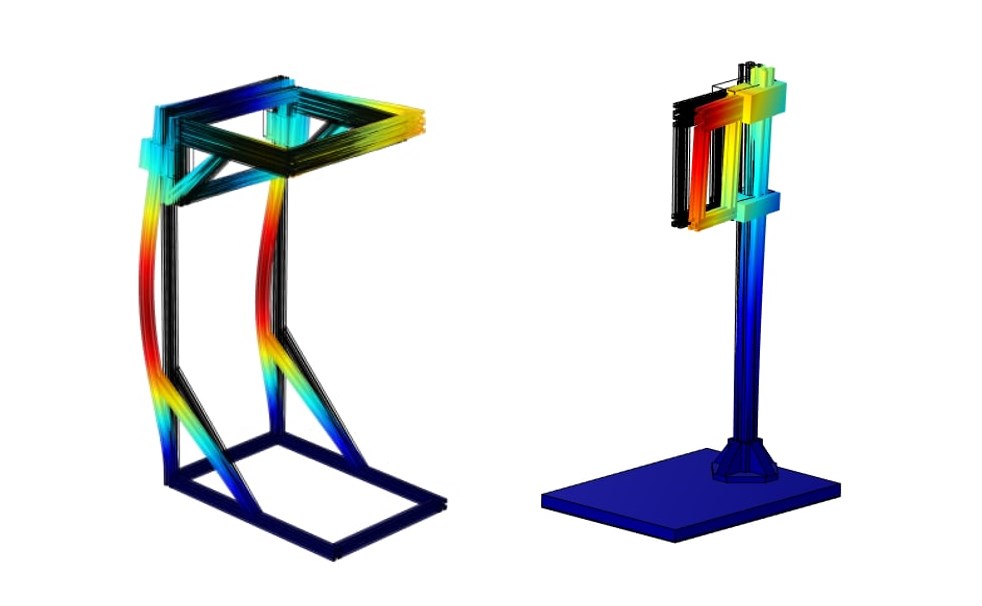

Vibration Analysis

Power & driver box

This box is the heart of the system and allows users to control the device with or without the software. This box directly connects to a 220V AC power supplier and contains additional components to keep the device and user safe. Also for other lab applications, this box can be used as a 5V and 3A (max) power supplier. Moreover, when the computer is not connected user still is able to set a specific rotational speed and by using the PID algorithm the speed will be fixed even if the composition’s viscosity changes.

Software

The TMCS software has various applications. The most significant application of this software is monitoring and saving the data in real time. Moreover, users can change the time constant of the PID controller. This software Do Not need any specific settings and just by connecting the USB port to the power box and setting the COM, it will run easily. In other words, when the computer is connected, the embedded processor will not do the controlling process and the CPU of the computer will do it in a more efficient way.

Previous version

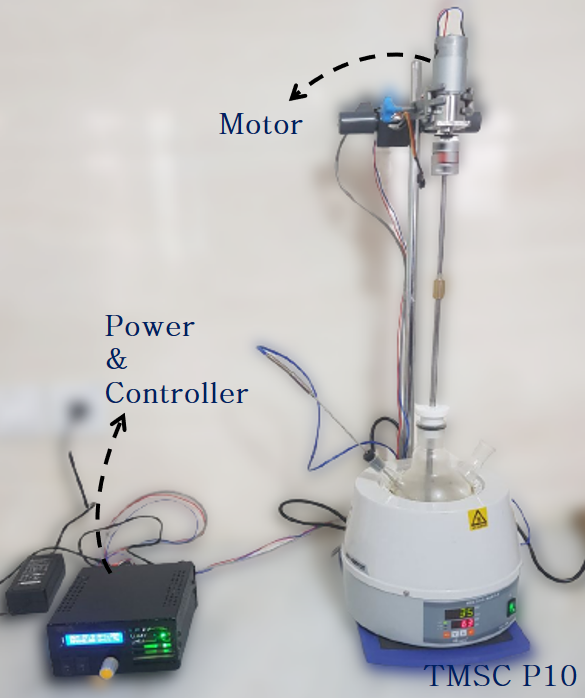

The previous version of the current TMCS was TMCS P10 which has lower efficiency and is not able to connect to the computer. The maximum rotational speed and torque of TMSC P10 are 300 rpm and 1.5 kg-cm respectively. The picture below indicates both devices (TMCS P21 and P10).

TMSC P10

TMSC P21
